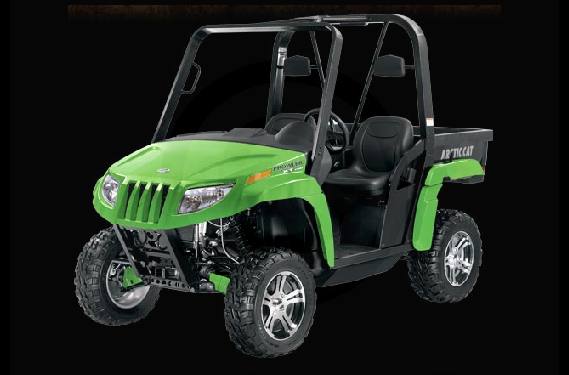

2009 Arctic Cat Prowler XT 700 H1 EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

UNSTOPPABLE FORCE. MOVABLE OBJECT.


When adventure calls, the Prowler 700 XT answers. At its core is a 700 HI EFI power mill that easily saws through the gnarliest terrain. Plus, the electric 2WD/4WD and differential lock makes getting more traction as simple as pushing a button or pulling a lever. Throw in front and rear 2-inch receivers and the beast has enough versatility to qualify as the ultimate all-around recreation machine.

    700 H1 EFI Engine
    • Race-bred 695cc liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemisperical combustion chamber, which delivers more efficient combustion resulting in better performance. Electronic Fuel Injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big-time.
    "NEW 14" Machined Aluminum Rims
    • Newly styled heavy-duty polished aluminum rims with painted black inlays. These sporty rims will grab attention and won't let go.
    Fully-Independent Suspension
    • The fully independent front and rear suspension features an industry-leading 12.5" of ground clearance and 10" of suspension travel. That means you get a comfortable ride that gets you to those places you want to go, regardless of rocks, locks or other unforseen obstacles.
    Rear Cargo Box
    • Tiltable rear cargo box is constructed of tough plastic and is rated to haul 600 lbs. Perfect for lugging hunting and fishing gear, tools and materials, firewood, and cabin toys like outboard motors and waterskis. It's easy to see why this machine is the ultimate recreation vehicle.
    Towing Capacity
    • With a receiver hitch on both front and back, this machine is rated to tow 1500 lbs. So go ahead, launch your fishing boat, move that snowmobile trailer, or haul hay, wood, building or landscaping materials with one of our 2-wheel cargo trailers.
    Specifications
    • Displacement (cc): 695
    • Engine Type: SOHC, 4-Stroke, 4-Valve
    • Bore & Stroke (mm): 102 x 85
    • Cooling System: Liquid w/Fan
    • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
    • Drive System: 2/4 WD + Electric Diff Lock
    • Overall Width (in./cm): 60.0/152.4
    • Overall Height (in./cm): 77.5/196.9
    • Overall Length (in./cm): 118.5/301.0
    • Wheelbase (in./cm): 75/190.5
    • Suspension Travel—Front (in./cm): 10/25.4
    • Suspension Travel—Rear (in./cm): 10/25.4
    • Ground Clearance (in./cm): 12.5/31.7
    • Suspension Type—Front: Double A-Arm
    • Suspension Type—Rear: Double A-Arm
    • Front Brakes: Hydraulic Disc
    • Rear Service Brake: Hydraulic Disc
    • Tires—Front: 26x9-14
    • Tires—Rear: 26x11-14
    • Max Fuel Capacity (gal./liters): 8.2/30
    • Rack/Box/Flatbed Capacity—Rear (lbs./kg): 600/272
    • Under-Hood Capacity (lbs./kg): 25/11.4
    • Towing Capacity (lbs./kg): 1500/680.4
    • Alternator Capacity (amps): 25
    • Speedometer: Analog
    • Odometer: Digital
    • Dry Weight (lbs./kg): 1217.3/551.9
    • Minimum Operator Age: 16
    • Available Colors: Lime Green or Red
    NOTES:

    Specifications subject to change without notice.


    Specifications

    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 695 cc
    Bore and Stroke 102 x 85 mm
    Cooling Liquid w/Fan
    Fuel System Electronic Fuel Injection
    Chassis
    Front Suspension Double A-Arm
    Front Brakes Hydraulic Disc
    Front Tire 26x9-14
    Rear Suspension Double A-Arm
    Rear Brakes Hydraulic Disc
    Rear Tire 26x11-14
    Dimensions
    Dry Weight 1217.3 lbs. (551.9 kg)
    Front Travel 10 in. (25.4 cm)
    Fuel Capacity 8.2 gal. (30 l)
    Rear Travel 10 in. (25.4 cm)
    Wheelbase 75 in. (190.5 cm)
    Ground Clearance 12.5 in. (31.7 cm)
    Box Capacity Rack/Box/Flatbed Capacity—Rear: 600 lbs. (272 kg)
    Rack Capacity Rack/Box/Flatbed Capacity—Rear: 600 lbs. (272 kg)
    Towing Capacity 1500 lbs. (680.4 kg)
    Transmission
    Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
    Drive System 2/4 WD + Electric Diff Lock
    General
    Speedometer Analog
    Odometer Digital
    Colors Lime Green or Red

    Compare Models

    		 Print








    Year 2009
    Manufacturer Arctic Cat
    Model Prowler XT 700 H1 EFI
    Style Side x Side
    Chassis
    Front Suspension Double A-Arm
    Front Brakes Hydraulic Disc
    Front Tire 26x9-14
    Rear Suspension Double A-Arm
    Rear Brakes Hydraulic Disc
    Rear Tire 26x11-14
    Dimensions
    Dry Weight 1217.3 lbs. (551.9 kg)
    Front Travel 10 in. (25.4 cm)
    Fuel Capacity 8.2 gal. (30 l)
    Rear Travel 10 in. (25.4 cm)
    Wheelbase 75 in. (190.5 cm)
    Ground Clearance 12.5 in. (31.7 cm)
    Box Capacity Rack/Box/Flatbed Capacity—Rear: 600 lbs. (272 kg)
    Rack Capacity Rack/Box/Flatbed Capacity—Rear: 600 lbs. (272 kg)
    Towing Capacity 1500 lbs. (680.4 kg)
    Engine
    Engine Type SOHC, 4-Stroke, 4-Valve
    Displacement 695 cc
    Bore and Stroke 102 x 85 mm
    Cooling Liquid w/Fan
    Compression Ratio
    Fuel System Electronic Fuel Injection
    Ignition
    General
    Speedometer Analog
    Tachometer
    Odometer Digital
    Colors Lime Green or Red
    Warranty
    Transmission
    Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
    Drive System 2/4 WD + Electric Diff Lock
