$6,849.00

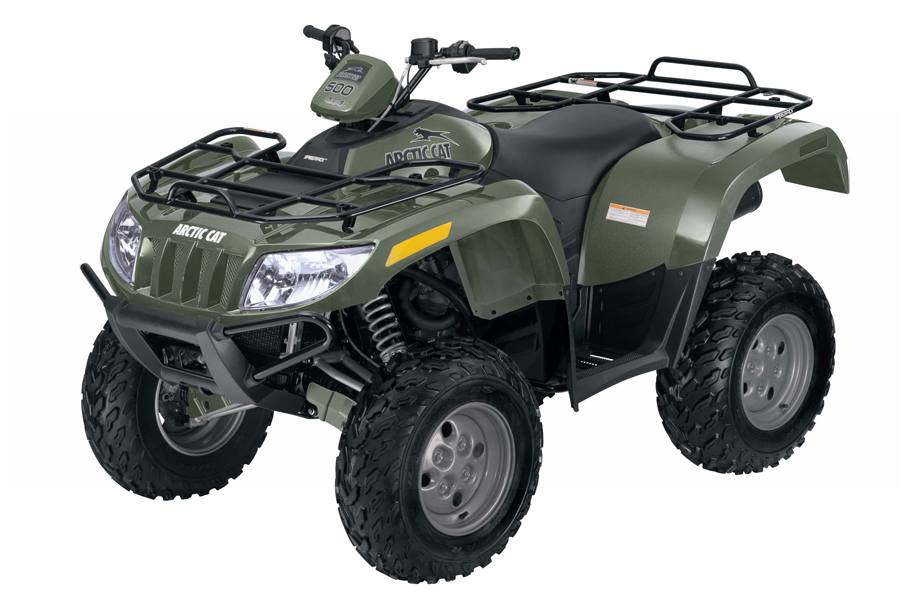

2009 Arctic Cat 500 4x4 (Automatic)
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

There are more than 4X4 reasons to ride.


Some see obstacles. This ATV sees lunch. With on-the-fly push-button 4WD, climbing over almost anything and everything is easy. Meanwhile the fully independent suspension and class-leading ground clearance makes sure you don't feel anything - except a healthy dose of adrenaline.


Available in either automatic or manual transmission.

  • 500 engine: 493cc liquid-cooled, single overhead cam engine features 4 valves and delivers value-packed power at every turn. This rugged 4-stroke has proven over the years that it's not only a big performer, but incredibly durable as well.
  • Electric 2WD/4WD and front differential lock: When the going gets tough, electric shift allows the rider to shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For maximum traction, activate the front differential lock.
  • Fully independent suspension: Fully independent front and rear suspension feature an industry-leading 12" of ground clearance and 10" of suspension travel, more than enough to get over and through whatever Mother Nature can dish out. Maintenance-free bushings mean no fuss, just keep riding.
  • Duramatic automatic transmission: Durable, efficient automatic CVT is easy to operate, adds dynamic engine braking and delivers maximum horsepower and torque to the driveshaft. Also features a Hi/Low shift range and a long-life, maintenance-free belt.
  • Manual 5-speed transmission available: A 500 4x4 Manual mode is available with a 5-speed transmission for the guy who needs more gear range. Or for the guy who just likes to shift through the gears while he rides.
Specifications
  • Displacement (cc): 493
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore & Stroke (mm): 87.5 x 82
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Overall Width (in./cm): 47.5/121
  • Overall Height (in./cm): 49.3/125.2
  • Overall Length (in./cm): 84.8/215.4
  • Wheelbase (in./cm): 50/127
  • Suspension Travel — Front (in./cm): 10/25.4
  • Suspension Travel — Rear (in./cm): 10/25.4
  • Ground Clearance (in./cm): 12/30.5
  • Suspension Type — Front: Double A-Arm
  • Suspension Type — Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 25x8-12
  • Tires — Rear: 25x10-12
  • Max Fuel Capacity (gal./liters): 6.5/24.6
  • Rack Capacity — Front (lbs./kg): 100/45.4
  • Rack/Box/Flatbed Capacity — Rear (lbs./kg): 200/90.8
  • Towing Capacity (lbs./kg): 1050/477
  • Alternator Capacity (amps): 25
  • Speedometer: Digital
  • Odometer: Digital
  • Dry Weight (lbs./kg): 674/305.7
  • Minimum Operator Age: 16
  • Available Colors: Green or Red
NOTES:

Specifications subject to change without notice.


Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 493 cc
Bore x Stroke 87.5 mm x 82 mm
Engine Cooling Liquid w/Fan
Alternator 25 amp
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Dimensions/Capacities
Dry Weight 674 lbs (305.7 kg)
Front Rack Capacity 100 lbs (45.4 kg)
Rear Rack Capacity 200 lbs (90.8 kg)
Towing Capacity 1050 lbs (477 kg)
Fuel Capacity 6.5 gal (24.6 l)
Ground Clearance 12 in. (30.5 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 49.3 in. (215.4 x 121 x 125.2 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
General
Speedometer Digital
Odometer Digital
Colors Green or Red

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model 500 4x4 (Automatic)
Style Utility
MSRP* $6,849.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Frame
Dimensions/Capacities
Dry Weight 674 lbs (305.7 kg)
Front Rack Capacity 100 lbs (45.4 kg)
Rear Rack Capacity 200 lbs (90.8 kg)
Towing Capacity 1050 lbs (477 kg)
Fuel Capacity 6.5 gal (24.6 l)
Ground Clearance 12 in. (30.5 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 49.3 in. (215.4 x 121 x 125.2 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 493 cc
Bore x Stroke 87.5 mm x 82 mm
Cylinders
Engine Cooling Liquid w/Fan
Fuel System
Starting System
Alternator 25 amp
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Green or Red
Warranty

Current Promotions

There are currently no promotions available for this product.
