Showcase Product Detail

Audio Accounts Products Images
Units » Arctic Cat » 700 H1 EFI
Model Quick Search

$8,129.00

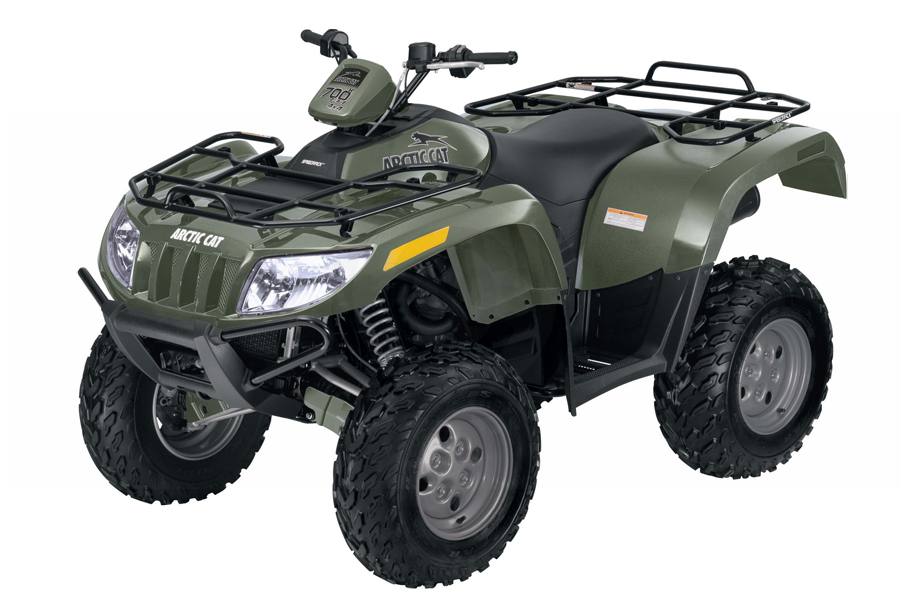

2009 Arctic Cat 700 H1 EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Fianlly, a machine that works as hard as you play.


With all the riding you do, its only fair you have a machine that can keep up. And the 700 H1 EFI does just that and more with 11" of ground clearance and a formidable single-cylinder H1 engine, the 700 H1 EFI will make sure you get to play as long as you like.


Also Available in Max-4 Camo finish.

  • Ride-in suspension: Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaing 11" of ground clearance. That means more confidence hammering through light corners on the trail, as well as clearing big, nasty obstacles off the trail.
  • Electric 2WD/4WD and front differential lock: When the going gets tough, electric shift allows the rider to shift from 2-wheel drive to 4-wheel drive on the fly with just a push of a button. For maximum traction, activate the front differential lock.
  • 700 H1 EFI engine: Race-bred 695cc liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemispherical combustion chamber, which delivers more efficient combustion resulting in better performance. Electronic Fuel Injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big time.
  • Duramatic automatic transmission: Durable, efficient automatic CVT is easy to operate, adds dynamic engine braking and delivers maximum horsepower and torque to the driveshaft. Also features a Hi/Low shift range and a long-life, maintenance-free belt.
Specifications
  • Displacement (cc): 695
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore & Stroke (mm): 102 x 85
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
  • Drive System: 2/4 WD + Electric Diff Lock
  • Overall Width (in./cm): 47.5/121
  • Overall Height (in./cm): 48/121.92
  • Overall Length (in./cm): 84.8/215.4
  • Wheelbase (in./cm): 50/127
  • Suspension Travel — Front (in./cm): 10/25.4
  • Suspension Travel — Rear (in./cm): 10/25.4
  • Ground Clearance (in./cm): 11/27.9
  • Suspension Type — Front: Double A-Arm
  • Suspension Type — Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 25x8-12
  • Tires — Rear: 25x10-12
  • Max Fuel Capacity (gal./liters): 6.5/24.6
  • Rack Capacity — Front (lbs./kg): 100/45.4
  • Rack/Box/Flatbed Capacity — Rear (lbs./kg): 200/90.8
  • Towing Capacity (lbs./kg): 1050/477
  • Alternator Capacity (amps): 25
  • Speedometer: Analog
  • Odometer: Digital
  • Dry Weight (lbs./kg): 697/316
  • Minimum Operator Age: 16
  • Available Colors: Green, Red, or Lime

Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore x Stroke 102 mm x 85 mm
Engine Cooling Liquid w/Fan
Alternator 25 amp
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Dimensions/Capacities
Dry Weight 697 lbs (316 kg)
Front Rack Capacity 100 lbs (45.4 kg)
Rear Rack Capacity 200 lbs (90.8 kg)
Towing Capacity 1050 lbs (477 kg)
Fuel Capacity 6.5 gal (24.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 48 in. (215.4 x 121 x 121.92 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Electric Diff Lock
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
General
Speedometer Analog
Odometer Digital
Colors Green, Red, Lime or Camo

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model 700 H1 EFI
Style Utility
MSRP* $8,129.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Frame
Dimensions/Capacities
Dry Weight 697 lbs (316 kg)
Front Rack Capacity 100 lbs (45.4 kg)
Rear Rack Capacity 200 lbs (90.8 kg)
Towing Capacity 1050 lbs (477 kg)
Fuel Capacity 6.5 gal (24.6 l)
Ground Clearance 11 in. (27.9 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 48 in. (215.4 x 121 x 121.92 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Electric Diff Lock
Final Drive
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore x Stroke 102 mm x 85 mm
Cylinders
Engine Cooling Liquid w/Fan
Fuel System
Starting System
Alternator 25 amp
General
Speedometer Analog
Tachometer
Odometer Digital
Lighting
Colors Green, Red, Lime or Camo
Warranty

Current Promotions

There are currently no promotions available for this product.
